mid size dumps
2026 DELUXE DUMP TRAILER - (5'W x 10'L) 7K
SIZE: 5’Wide X 10’Long – 7000# TANDEM AXLE (7K)
specifications
- Weighs: 2800 lbs
- Cargo Capacity: 4200 lbs
- 7000# Tandem Axle
- 5" Channel Frame
- 4" Channel Treehouse
- 4x2" Tube Top Frame
- 3x2" Tube Cross Members
- 11-Gauge Smooth Floor
- 2-5/16" Coupler
- Deep Cycle Battery
- Electric Battery Charger
- Electric Brakes w/ Breakaway System
- 2x12" Push Cylinders & Top Posts
- 10" Channel Cylinder Support
- 25"H 14ga Diamond Plate Sides
- Extra Long 14’ Deluxe Roll-Up Tarp
- Heavy Duty Tarp Clips
- Lockable Double Rear Doors

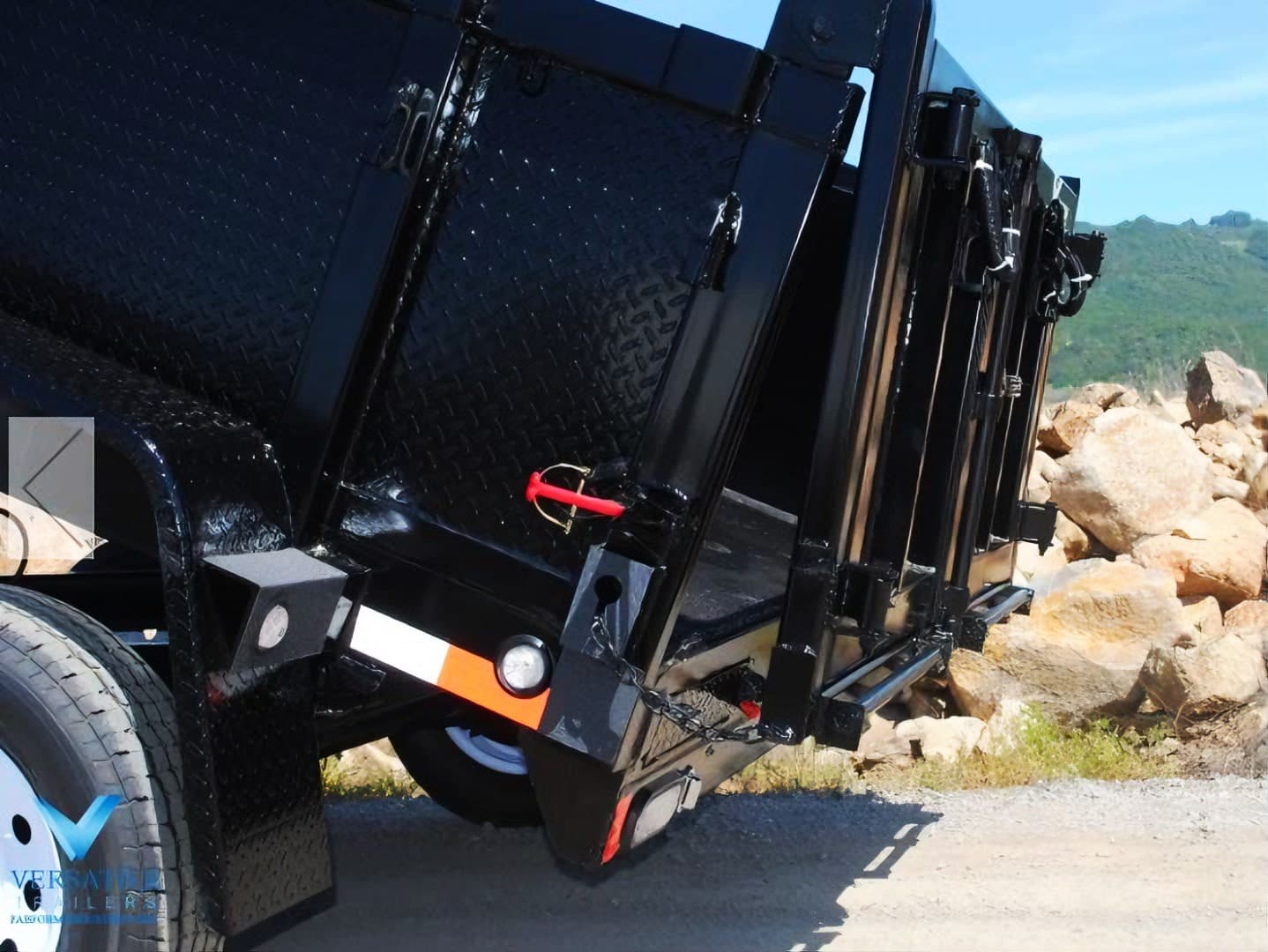

- Spread Gate w/ Safety Latches
- Ramps Stored in Undercarriage
- Diamond Plate Jeep Fenders
- Non-Slip Fender Step Plates
- LED Lights
- Sealed Wiring Harness
- Lockable Under-Box Tie Down Clips
- Secure Tool Box Under Box
- Serviceable Dump Hinge
- 7000# Top Wind Front Jack
- 15" Radial Tires
- Mounted Spare Tire Included
N&N TANDEM AXLE DUMP - (5'W x 10'L) 10K
SIZE: 5’Wide X 10’Long – 5200# TANDEM AXLE (10K)
specifications
- Year: 2025
- 5200 lb Tandem Axle (10k)
- 7000 lb Front Jack
- Electric Brakes

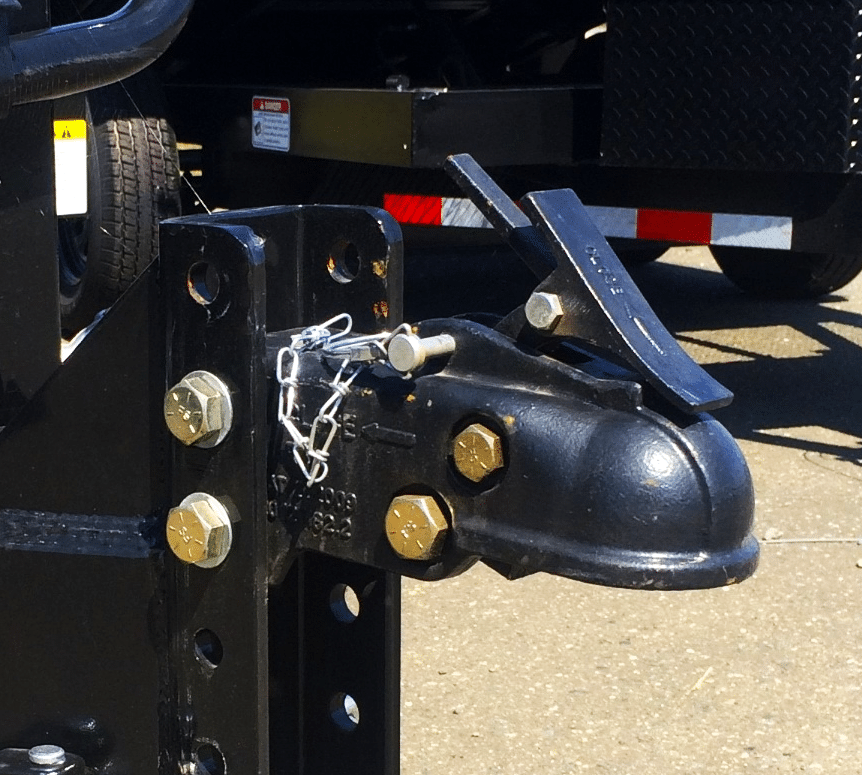

- 2-5/16 Adjustable Coupler with 5 Positions
- 3" Cross Members on 16" C/C
- 12-Gauge Galvanized Steel Floor
- 7 Ton Telescopic Cylinder
- 4 D-Rings Inside Box
- 6" H-Beam Frame
-
2" Wide Slipper Spring
Industrial Suspension - Tarp Included
- LED Lights
- 12-Gauge Steel 18" High Sides
-
Two-Way Back Gate,

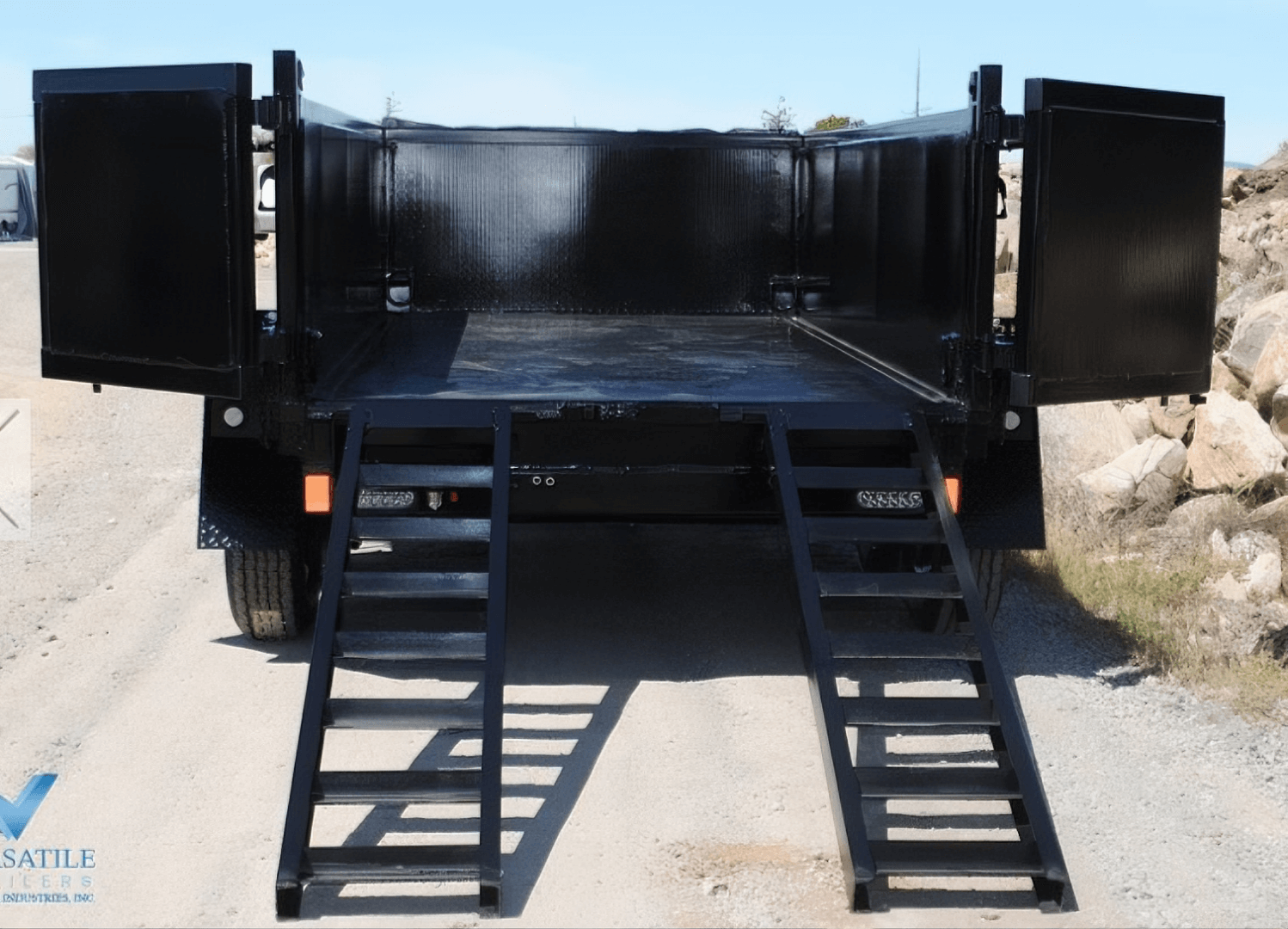

Barn Doors/Spread Gate - Under-Mounted Ramps
- Non Slip Steps
- No Ramps
2026 Dump TRAILER - (6'W x 10'L) 10K
SIZE: 6’Wide X 10’Long – 5200# TANDEM AXLE (10K)
specifications
- Year: 2026
- Weighs: 3600 lbs
- Cargo Capacity: 6400 lbs
- 5200# Tandem Axle (10K)
- 5" Channel Bottom Frame
- 5" Channel Treehouse
- 4x2" Tube Top Frame
- 4x2" Tube Upright Posts
- 11-Gauge Smooth Floor
- 24"H 12ga Formed Diamond Plate Sides
- 2-5/16" A-Frame Coupler
- C-Keeper Tie Downs (Each Post)
- 2x4" Formed Stake Pockets
- Lockable Metal Toolbox
- Secure Tool Tray Under Box
- D-Rings Inside Box
- Slip-Proof Step Guards
- Fender Step Plates
- Diamond Plate Fenders
- 7000# Top Wind Jack
- 4-Wheel Electric Brakes
- Breakaway System
- 110V Battery Charger
- Deep Cycle Battery
- Sealed Wiring Harness
- LED Lights
- Serviceable Dump Hinge
- Radial Tires (10K Rated)
- ST225/15 Tires
- Spare Tire Bracket
- 2-5/16" Adjustable Coupler
- Dump Angle: 45°–50°
- Standard Black Paint
- Roll-Up Tarp
- Double Rear Doors
- Spread Gate
- Rear Ramps
Low Pro Action Series GALVANIZED Dump - (6'W x 12'L) 10K
SIZE: 6’Wide X 12’Long – 5200# TANDEM AXLE (10K)
specifications
- Year: 2025
- Colour: Silver
- (2) 5200 lb Leaf Spring Axles with EZ Lube Hubs
- All Wheel Electric Brakes with Battery Breakaway Kit
- LED Light Upgrade All Around
- 15” Radial Tires with Powder Coated Rims
- Three Stage Telescopic Hoist
- Low Profile Design
- Barn Gates Std with Cam Lock
- Stabilizer Jack

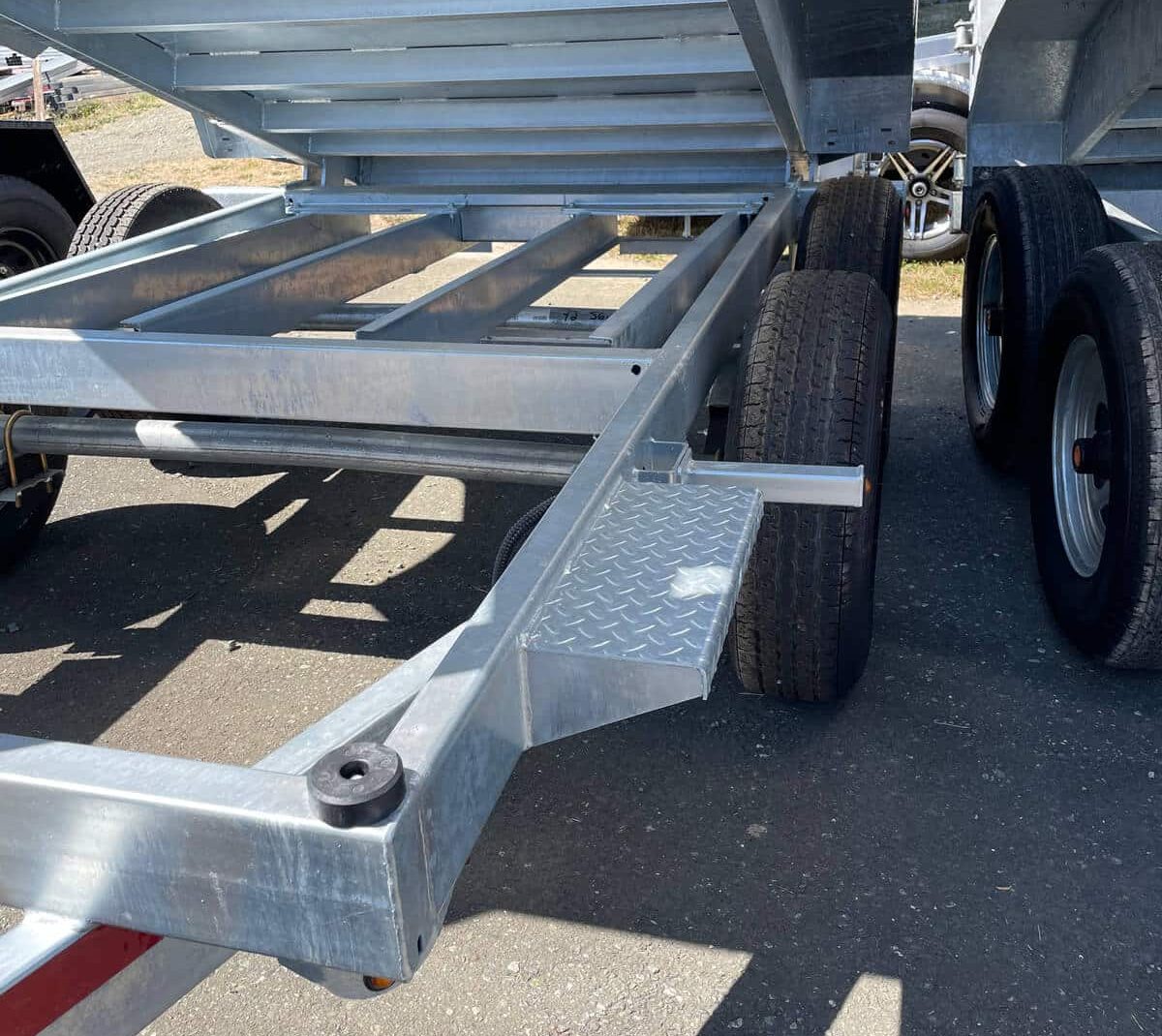

- Hot Dipped Galvanized Frame
- Flush Lock on Tool Box
- Standard Tongue Jack
- Tarp Kit with Custom Built Casing

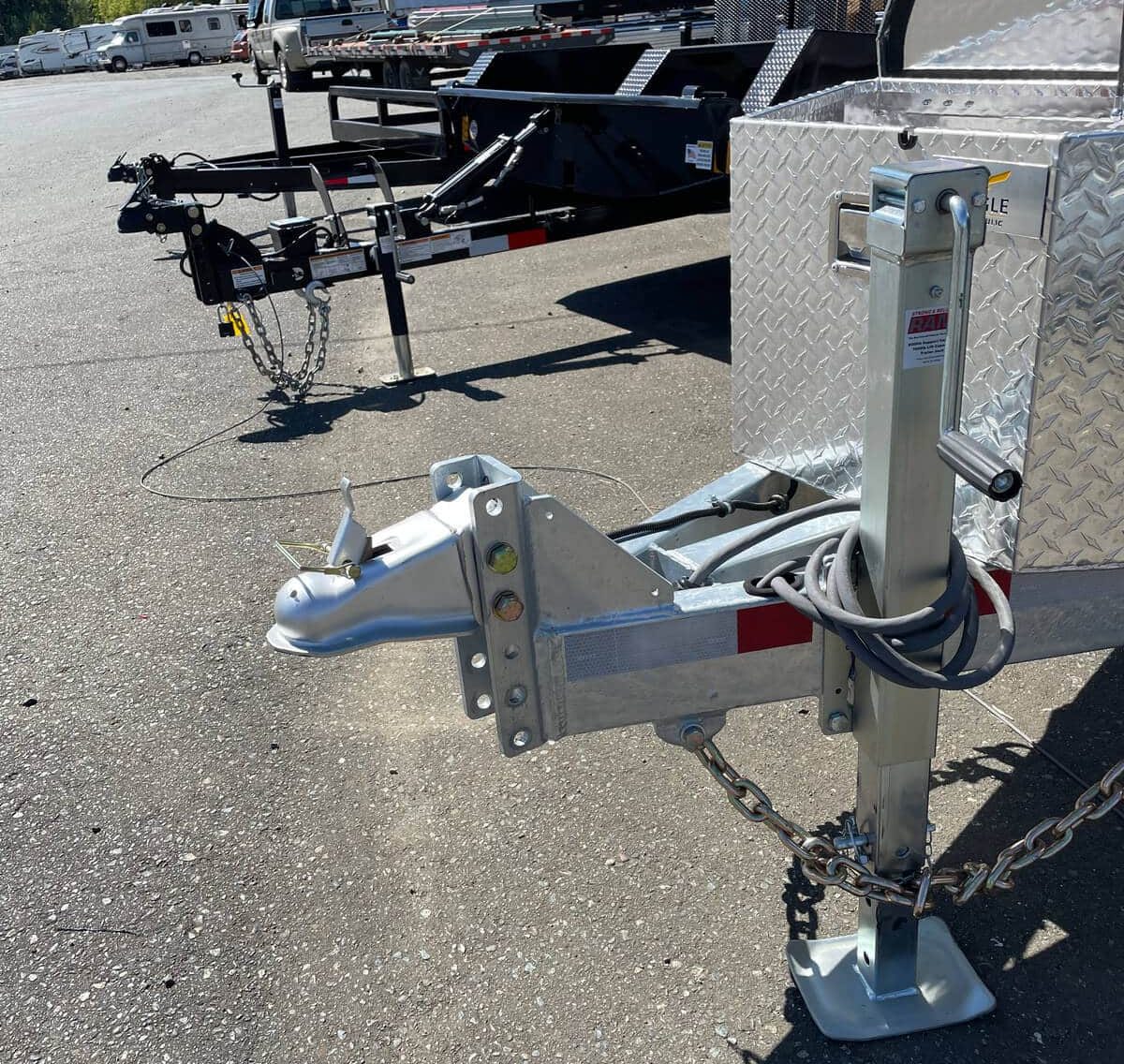

- Adjustable 2-5/16” Coupler (2-5/16” Ball Required to Tow)
- 7 Way Trailer Plug Connector
Low Pro Action Series Dump - (6'W x 12'L) 10K
SIZE: 6’Wide X 12’Long – 5200# TANDEM AXLE (10K)
specifications
- Year: 2025
- Colour: Red & Black
- (2) 7000 lb Leaf Spring Axles with EZ Lube Hubs
- All Wheel Electric Brakes with Battery Breakaway Kit
- LED Light Upgrade All Around
- Primed and Painted Exterior
- 16” Radial Tires with Powder Coated Rims
- Three Stage Telescopic Hoist
- Low Profile Design
- Barn Gates Std with Cam Lock
- Stabilizer Jack

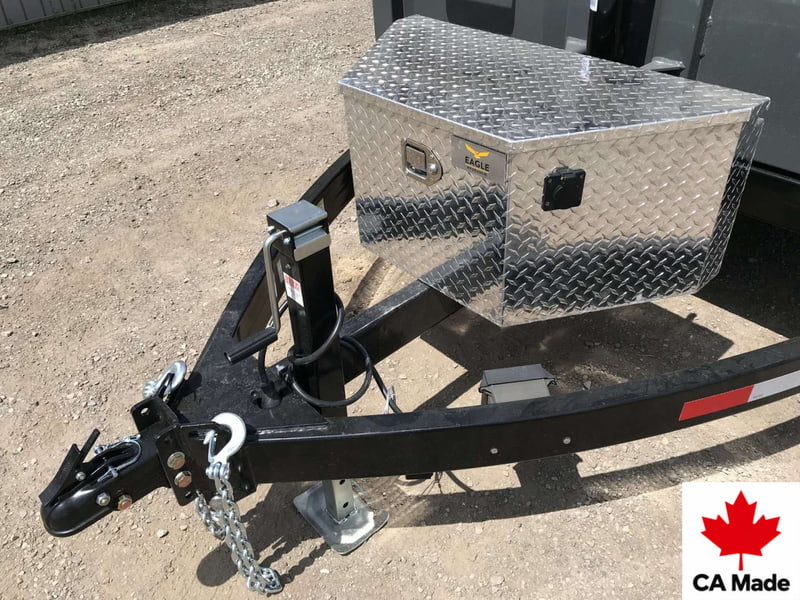

- Flush Lock on Tool Box
- Standard Tongue Jack

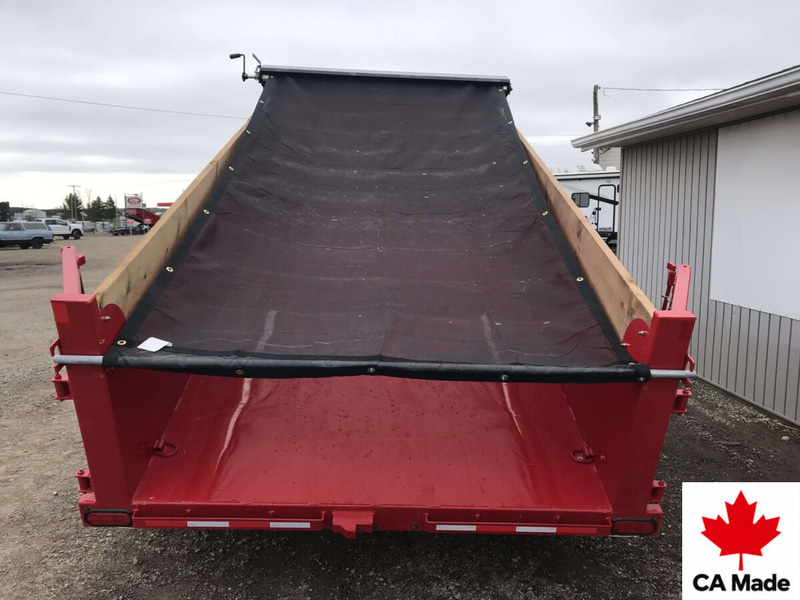

- Tarp Kit with Custom Built Casing
- Adjustable 2-5/16” Coupler (2-5/16” Ball Required to Tow)
- 7 Way Trailer Plug Connector
MID DUMP WITH CONTRACTORS PACKAGE - (6'W x 12'L) 10K
SIZE: 6’Wide X 12’Long – 5200# TANDEM AXLE (10K)
specifications
- Weighs: 3600 lbs
- Push Cylinder
- 4-Wheel Brakes
- Spread Gate
- Double Back Doors
- Extra Long Tarp for bulky loads
- 10K Ramps
- Adjustable Coupler
- Cargo Capacity: 6400 lbs
- Secure Tool Tray Under Box
- night-time plug-in charger
- 24”H Diamond Plate sides
- 4- Tie Downs Inside Box
- Tarp Tie Downs on top rail
- Deep Cell battery
- plug in battery charger
- battery gauge
- anti-scratch protection
- slip proof on steps
- magnetic dump controller
- 2”x 4” stake pockets
- Radial tires
- mounted spare tire
